Phoenix Dehumidifiers

LGR Dehumidifiers

LGR Dehumidifiers

R125 LGR DehumidifierR150 LGR DehumidifierR175 LGR DehumidifierR200 LGR Dehumidifier200 HT LGR Dehumidifier200 MAX LGR Dehumidifier270 HTx LGR Dehumidifier300 LGR DehumdifierSolution Performance Amplifier

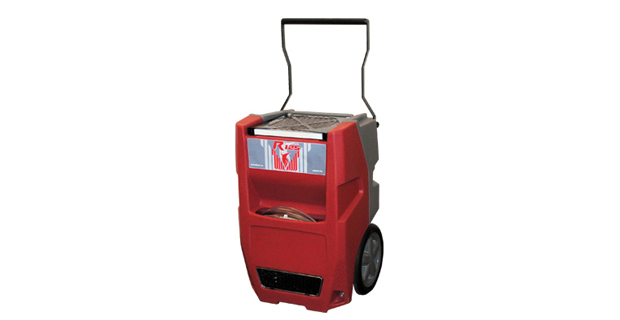

R125 LGR Dehumidifier

Small Size, Small Price, Big Performance

LGR Dehumidifiers

The Phoenix R125 is the first 65 pint LGR Dehumidifier. The R125 offers high quality restoration drying performance in the WTRDHM category at entry-level pricing. The Phoenix R125 utilizes new patent-pending LGR technology that produces maximum grain depression and removes water long after conventional dehumidifiers stop. As a result, structures, contents and materials dry quicker, allowing you to get to your next job faster. At only 79 lbs. and with a compact 20? W x 17? D footprint, the R125 fits virtually anywhere you need to dry.

The Phoenix R125 combines Phoenix innovation, technical expertise, and proven durability into a small, portable, and durable roto-mold housing. In addition to the R125’s compact size and superior performance, the unit features high energy efficiency, front cord and hose storage, a ductable outlet, a pleated media filter, and a rotating handle for stacking, transport and storage.

The R125 uses patent-pending technology to achieve LGR performance in a compact platform. At only 79 pounds, the R125 is the smallest and lightest LGR ever produced. Proprietary coil technology helps the R125 outperform similar size units at both high and low temperatures, making it one of the most flexible and easiest to use units on the market.

The R125’s outlet incorporates a wire duct collar for 10? lay-flat duct. The outlet grill is also configured to accept a variety of thermo-hygrometers probes (e.g. Vaisala, Humiport, etc.) for taking accurate psychrometric readings. The 25 foot power cord and 33 foot condensate hose store conveniently in the front storage pocket.

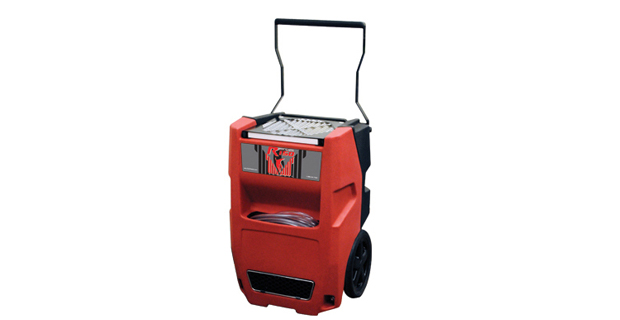

R150 LGR Dehumidifier

Smallest, Lightest, Most Portable LGR, Patent-Pending GTR™ Technology

LGR Dehumidifier R150

With water removal of 75 ppd@AHAM, using 5.5 Amps and weighing in at a mere 82 lbs., the new Phoenix R150 LGR dehumidifier packs the performance of a “Large” dehumidifier into the smallest, lightest, and most portable chassis in the restoration market. The R150 with patent-pending GTR (Graduated Thermal Reduction) Technology combines Phoenix innovation, technical expertise, and proven durability into a unit that will remove more water, produce higher grain depression, and dry structures faster than competitive dehumidifiers. The R150’s GTR technology will allow the restoration professional to continue to dry in higher temperatures without any manual adjustments to the unit (up to 110°F).

In addition to this unit’s performance benefits, the R150 offers outlet ducting, pleated media filter, energy efficient operation, and front cord and hose storage. And, finally, its rotating handle design and compact body add to its appeal for stacking, storage and transport. The R150 is the latest member of the Phoenix line of LGR dehumidifiers; the most effective and versatile drying devices made.

The R150 uses patent-pending GTR technology to achieve LGR performance and higher grain depression up to 110°F in a compact platform. At 79 pounds and 82 pounds respectively, the Phoenix R125 and the R150 are the smallest and lightest LGRs ever produced. Proprietary coil technology and patent-pending GTR technology help the R150 outperform similar size units at both high and low temperatures, making it one of the most flexible and user friendly units on the market.

<

The R150’s outlet incorporates a wire duct collar for 10? lay-flat duct. The outlet grill is also configured to accept a variety of thermo-hygrometers probes (e.g. Vaisala, Humiport, etc.) for taking accurate psychrometric readings. The 25 foot power cord and 33 foot condensate hose store conveniently in the front storage pocket.

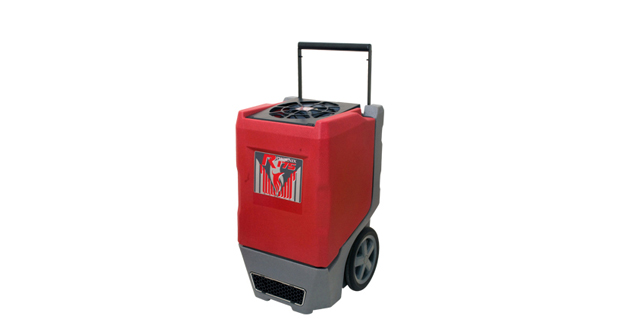

R175 LGR Dehumidifier

Compact Design, Big Performance

LGR Dehumidifier R175

The Phoenix R175 combines our Proven Performance into a compact, state of the art, roto-mold design. The R175 reflects all the ingenuity and engineering expertise that is expected in Phoenix name-brand equipment.

Efficient design results in the R175 removing 30% more water (92 pints at AHAM) than competitive LGR units of similar size, while drawing only 6.3 amps of power. The Phoenix reputation for performance is continued in the R175’s excellent grain depression and operating range.

The new solid state control panel features a lighted hour meter, pump purge control and a defrost light. The hour meter can be activated for ten seconds when the unit is unplugged to log the status of the unit in the warehouse or on the truck. The sturdy telescoping handle provides sure control and retracts for storage. The recessed 12-inch wheels, compact design and balanced weight distribution make the R175 the most maneuverable dehumidifier in the restoration industry.

The rugged roto-mold housing resists dents and dings and the granite pigments hide scuffs and scratches. The body also features chamfered corners to prevent damage to walls and woodwork while maneuvering on the job-site. Phoenix attention to detail and fore-thought are evident in the R175’s ability to “nest” one upon another, or securely be “layered” with plywood. An area to accept a company label or identification is located below the R175 emblem. Notched surfaces for tie-down straps and multiple lift points were also included.

Like every Phoenix, the R175 features effective air filtration with a pleated media MERV-7 filter standard (optional MERV-11 is available). Multiple ducting options are available with 12-inch intake duct tabs on the lid and a wire duct collar for 10-inch lay-flat duct.

The outlet grill is configured to accept a variety of thermo-hygrometer probes (e.g. Vaisala, Humiport, etc.) for taking accurate psychrometric readings. The 20-foot power cord and 33-foot condensate hose store conveniently inside the hinged stainless steel lid.

The R175 marks Phoenix Restoration Equipment’s entry into the manufacturing of roto-mold LGR dehumidifiers proving our commitment to technology, performance and durability.

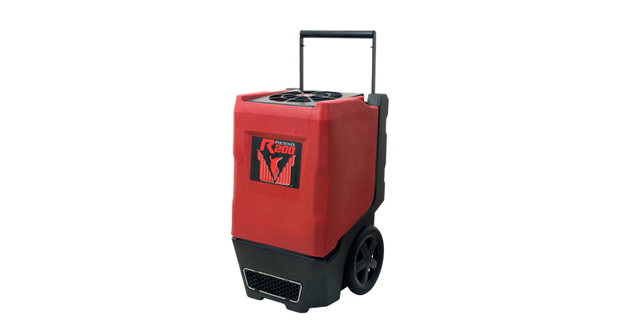

R200 LGR Dehumidifier

Extra Large Capacity in a Small Package

LGR Dehumidifier 200

Phoenix Restoration Equipment is proud to announce the release of its second generation rotomold LGR, the R200. Featuring an enhanced R410A refrigerant system and high-CFM blower, the R200 achieves over 35% more water removal than the R175 while maintaining the same small footprint and lightweight design.

The R200 pulls 125 pints at AHAM while drawing only 8.3 amps. By using Phoenix’s patented bypass system, the R200 will continue to maximize water removal in temperatures beyond the competition’s acceptable operating range. The R200 also offers user-friendly solid state controls which – in addition to power and purge buttons – now feature total hours and job hours.

The R200 also shares all of the features that made the R175 a favorite among restoration professionals. Like the R175, the R200 is lightweight, has large inset wheels, a sturdy retractable handle, and a chamfered cabinet, making it the most maneuverable dehumidifier on the market.

The R200 also provides a number of convenience features that set it apart from the competition. The unit features an outlet grill that is configured to accept a variety of thermohygrometer probes (e.g. Vaisala, Humiport, etc.) for taking accurate psychrometric readings. For added convenience, the power cord and condensate hose store inside the hinged lid, while the stackable design helps maximize your storage capacity. Like all Phoenix dehumidifiers, the R200 also features superior filtration, multiple ducting options, and a built-in condensate pump with 20 feet of lift.

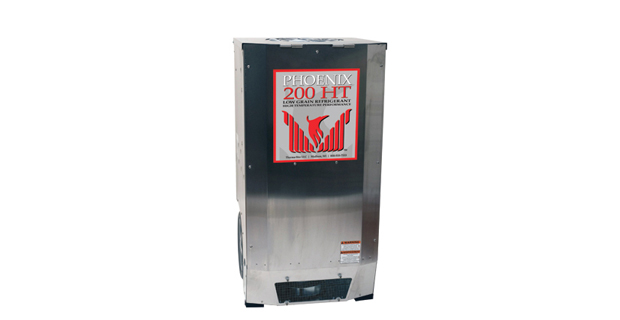

200 HT LGR Dehumidifier

LGR Dehumidifier 200 HT

The Phoenix 200 HT is the ultimate in low grain refrigerant dehumidification and high temperature performance. The 200 HT is the first LGR dehumidifier designed to maintain maximum water removal capacity through ambient conditions up to 120°F.

The Phoenix 200 HT, featuring its patented technology, not only allows superior performance and greater CFMs in high ambient temperatures, but also exceeds the performance and efficiency of the original Phoenix 200 MAX under all conditions.

Faster Drying Means Happier Customers

The Phoenix 200 HT’s ability to perform in temperatures above 90°F offers two major advantages over other standard LGR’s. First, drying at higher temperatures speeds the evaporation of moisture in the structure when compared to cooler temperatures. Second, the Phoenix 200 HT reduces the need to remove drying equipment to control temperature inside the affected area.

The downward-focused exhaust airflow directs dehumidified low-grain air toward the floor, while a raised base improves drying directly under the dehumidifier. The Phoenix 200 HT also features a recessed condensate outlet, inboard wheels, increased airflow with higher static pressure and an improved skid plate design.

As always, Phoenix dehumidifiers feature significant air filtration. The standard 65% MERV 11 filter removes over 90% of seven-micron particles (the size of a human red blood cell). This filtration improves the air quality in the areas being dried and assures the continued optimal performance of the refrigeration system.

The multiple ducting options on the Phoenix 200 HT allow for ducting both the intake air and the filtered, dehumidified exhaust air.

High Temperature Performance

The Phoenix 200 HT is designed to maintain water removal capacity up through 120°F. In order to accomplish this, Phoenix engineers created a highly effective method of bypassing ambient air over the condenser when ambient temperatures are above 80°F.

Above 80°F – When used in high temperature conditions (above 80°F), the refrigerant pressure inside the condenser rises. By removing the grain control magnet from the by-pass openings, additional airflow is directed over the condenser and less airflow is directed across the evaporator. This airflow lowers the refrigerant pressure in the condenser while also slowing down the air across the evaporator, which allows the air to reach its dew point.

Between 50°F and 80°F – When used in normal dehumidifier operating temperatures (50°F to 80°F), the grain control magnet should cover the bypass openings. This allows increased airflow across the evaporator and increases performance by increasing the amount of air that is dehumidified.

Below 50°F – When the Phoenix 200 HT is used in very cool operating temperatures (below 50°F), frost will form on the evaporator coil as it dehumidifies. When enough frost forms, the defrost thermostat will initiate the timed defrost cycle. The cycle periodically turns off the compressor while allowing the blower to run. The grain control magnet should cover the bypass openings in this operating range because the increased airflow and static pressure will help defrost the evaporator more quickly and efficiently.

200 MAX LGR Dehumidifier

High Capacity, Low Grain Refrigerant Dehumidifier

LGR Dehumidifier 200 Max

The Phoenix 200 MAX is one of the most effective and versatile drying devices available on the market today. The 200 MAX removes more water and has more grain depression than other refrigerant dehumidifiers, even though it only requires 7.4 amps of electricity. When you combine this performance with the multiple ducting and air filtration options, it is easy to understand why the Phoenix 200 MAX is considered the ultimate in low grain refrigerant dehumidification.

High-Efficiency Design

The term LGR (Low Grain Refrigerant) was created to describe the unique drying capabilities of the Phoenix 200 dehumidifier. Beginning with the original Phoenix 200 LGR, these units were known for delivering substantially drier air, as well as for drying areas to much lower specific humidity levels than conventional dehumidifiers. The Phoenix 200 MAX, an improved version of the original Phoenix 200, is the culmination of eight years of LGR manufacturing and design expertise.

As always, Phoenix dehumidifiers feature significant air filtration. This filtration dramatically improves the air quality in the areas being dried and assures the continued optimal performance of the refrigeration system.

The Phoenix 200 MAX offers multiple filter options. While MERV-6 and MERV-8 still can be used, Phoenix has raised the bar and now includes standard in all 200 MAX a 65% MERV-11. The optional 95% MERV-14 will remove particles as small as .3 microns.

Versatile and Durable

The multiple ducting options on the Phoenix 200 MAX allow for ducting both the intake air and the filtered and dehumidified supply air. This makes it possible to easily combine the Phoenix 200 MAX with a HEPA air scrubber, air conditioner or desiccant dehumidifier.

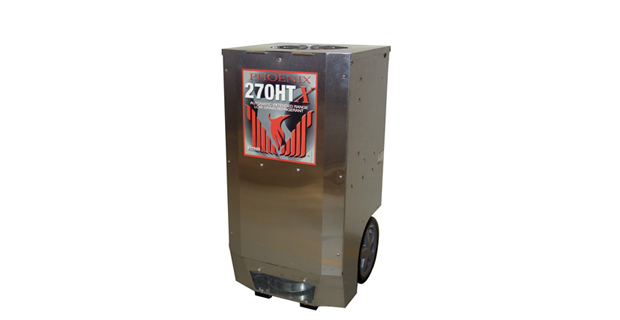

270 HTx LGR Dehumidifier

LGR Dehumidifier 270 HTX

The Phoenix 270HTx is one of the most effective and versatile drying devices available. The Phoenix 270HTx features more water removal (161 pints per day@AHAM) and higher grain depression than other refrigerant dehumidifiers, while drawing only 8.9 amps of electricity.

The 270HTx features Phoenix’s patented bypass design, which is now enhanced to compensate for temperature automatically. By sensing and adjusting to temperature changes in the drying chamber, the 270HTx maximizes water removal over an extended operating range without the need for manual adjustments.

At higher temperatures, where typical LGRs lose effectiveness, the Phoenix 270HTx automatically adjusts to continue removing moisture. This offers several advantages to the restorer, including faster evaporation rates, quicker drying, and elimination of the need to remove or modify equipment for temperature control.

The downward-focused exhaust airflow directs dehumidified low grain air toward the floor, while a raised base improves drying directly under the dehumidifier. The Phoenix 270HTx also features a recessed condensate outlet, inboard wheels, increased airflow with higher static pressure and an improved skid plate design.

As always, Phoenix dehumidifiers feature significant air filtration. The standard 65% MERV 11 filter removes over 90% of seven micron particles (the size of a human red blood cell). This filtration improves the air quality in the areas being dried and assures the continued optimal performance of the refrigeration system.

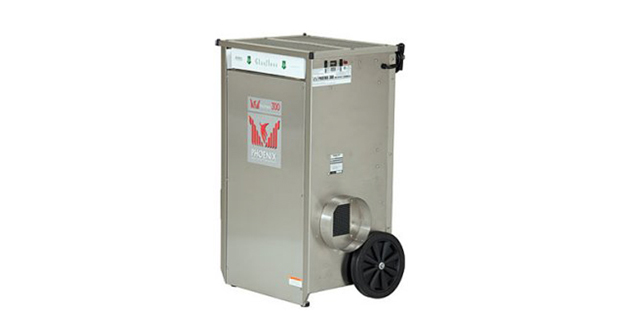

300 LGR Dehumdifier

LGR Dehumidifier 300

The Phoenix 300 LGR Dehumidifier, designed for the larger water damage restoration project, is a very high capacity unit capable of extracting over 300 pints per day at saturation. Its LGR technology makes it an efficient unit to operate and effective at lowering specific humidity. The heavyweight of the Phoenix range the 300 is nevertheless easily portable and relatively compact for its power. Thoughtfully designed, with the needs of the water damage restoration specialist in clear focus, this unit has all the features and performance required for demanding restoration jobs.

The Phoenix 300 LGR Dehumidifier will remove 176 pints of moisture from the air every 24 hours at 80°F and 60% relative humidity. These conditions are prescribed by AHAM (Association of Home Appliance Manufacturers) as a standard for comparing dehumidifiers. In more extreme conditions, such as may be encountered in some restoration jobs, the 300 will extract even more, rising to 232 pints at 80°F/80%RH and 304 pints at 90°F/90%RH.

This massive water extraction power is achieved using a single 15amp/110v circuit and reflects Phoenix’s design aim to achieve maximum water extraction from a standard circuit. This allows the unit to be utilized at almost any location and to deal with the drying of large areas.

Solution Performance Amplifier

A New Era in LGR Technology

Solution Performance Amplifier

The new Phoenix Solution LGR performance amplifier widens the effective operating range of LGR dehumidifiers, increases grain depression, and improves water removal rates up to 100 percent.

The Solution is a specially designed intercooler that pre-cools the incoming air stream to the LGR dehumidifier. This pre-cooling is the same process that provides LGR dehumidifiers with their leap in performance over conventional dehumidifiers. The Solution is designed to take advantage of outside, unaffected or air conditioned air to provide significant water removal in drying conditions up to 140°F. Therma-Stor testing has revealed an increase in water removal rates and faster drying times using the Solution by utilizing cold outside air.

The Phoenix Solution marks a new era in LGR dehumidifier performance. Since the pre-cooling function of the Solution actually removes BTUs from the drying area, it reduces the dependence on air conditioning and the need to sacrifice drying equipment to maintain your optimal drying conditions. The Solution enables significant dehumidification while taking advantage of ultra fast, high temperature drying rates. This high temperature dehumidification performance is an upgrade to heat-only drying equipment which is otherwise limited by high dewpoint conditions. When outside grain levels are high, the Solution allows dehumidification to enhance the drying process.

The Solution improves the grain depression of the dehumidified air. This increases the vapor pressure differential (the key to evaporation) up to 33% and accelerates the drying process. This improves drying times in all classes of water damage but is particularly beneficial in specialty drying applications, such as hardwood floors.

The Solution is designed to nest into the top of the Phoenix HT and 200 Max and is constructed of the same quality materials. The increased operating efficiency of the dehumidifier provided by the Solution is often equal to the 1.6 amp power requirement of the unit. The Solution is easy to carry and stacks for transportation and storage.

The Phoenix Solution is easy to set-up. Simply remove the top and filter from the Phoenix 200 Max or HT, install the dehumidifier bracket, set the Solution into the top opening of the dehumidifier and slide forward into the capture guides on the dehumidifier bracket. Then, duct the inlet air of the Solution to either an outside, unaffected or air conditioned source, and duct the outlet of the Solution back to the same source.

Desiccant Dehumidifiers

Desiccant Dehumidifiers

D385 Portable Desiccant Dehumidifier1200 Desiccant Dehumidifier1800 Desiccant System4800 Desiccant System

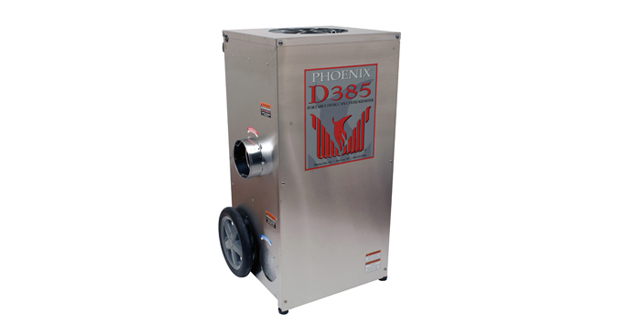

D385 Portable Desiccant Dehumidifier

Portable Dessicant Dehumidifier D385

The Phoenix D385 provides the perfect combination of features and performance the restoration industry has been craving in a desiccant dehumidifier. Ingeniously designed to operate vertically or horizontally, the Phoenix D385 provides the wide operating range and ultra-low grains of a desiccant with the water removal capacity of the largest LGRs in cabinet dimensions identical to our popular Phoenix 200 Max.

The Phoenix D385 is not like the “toy” portable desiccant dehumidifiers that lack real capacity. The D385 delivers 385 CFM of ultra-low grain process air. The true four hole configuration allows the Phoenix D385 to be located in the affected area with the 75 CFM re-activation air stream isolated from the drying chamber. Three hole design units inherently pull unaffected and/or outside air into the drying chamber. The D385’s four hole design allows the restoration contractor to set-up for effective positive, neutral or negative pressure operation.

Designed to operate vertically or horizontally, the D385 will fit inside most crawlspaces. Having the D385 securely inside, rather than outside the crawlspace access, avoids the possibility of someone tampering with the unit. The 385 CFM of process air will provide 3 ACH on a 1750 square foot crawlspace with a 4-foot height or over 850 square feet of affected areas with 8-foot ceilings.

The Phoenix D385 is easy to transport and set-up. The D385 will fit on your truck in the areas already designed for your LGRs and will move on to the jobsite with the same portability. All the power to the unit is provided by two 115 volt grounded power cords. Simply plug the cords into separate 15 amp circuits. Each cord draws only 11 amps to power the D385. The re-activation air stream is ducted through 6? flex duct provided with the unit and stores conveniently in the top of the unit.

The Phoenix D385 makes it possible for every restoration contractor to add the ultra-low grain performance of a desiccant with real water removal capacity to their equipment fleet.

The low price and high performance of the D385 makes it possible to purchase three Phoenix desiccants with a higher combined capacity, for a smaller investment than a single 1000 CFM competitive desiccant.

1200 Desiccant Dehumidifier

The Phoenix 1200 Desiccant Dehumidifier’s robust construction is designed to withstand the rigorous conditions of water damage restoration, shipyards, off- and on-shore petrochemical facilities, manufacturing plants and the general rental industry.

The Phoenix 1200 is constructed primarily of stainless steel for maximum strength and corrosion resistance. Over 15 years of rental and manufacturing experience have been incorporated into this tough weather resistant design. Its compact foot print and relatively light weight allows you to place up to three units into a large SUV or van. This desiccant dehumidifier has been designed from the ground up for simple, quiet, reliable operation under the harshest of conditions.

The Phoenix 1200 offers both a constant-run mode for maximum drying and a humidistat controlled mode for sensitive jobs. Using 230 volt power for dehumidification the 1200 leaves all the standard 120 volt outlets available for your Phoenix air movers. Its dual 8? process outlets allow you to run dry air to the interior as well as an attic or crawlspace. The filter is external for simple replacement.

The Phoenix 1200 is energy efficient and high performing. The 1200 is a 230 volt – single phase unit with selectable 25 or 40 amp draw, removing 344 pints of water per day at AHAM.

Portable, reliable, easy to use, the Phoenix 1200 is the perfect addition to any restoration professional’s drying arsenal.

1800 Desiccant System

Perfect First-Responder and Complete Mobile Drying System!

Desiccant System 1800

The Phoenix 1800 Desiccant provides a powerful 1800 CFM of process air while drawing only 16 amps at 115 volts. The 1800 is also constructed of durable, weather resistant stainless steel and uses an advanced silica gel rotor. Amazingly, the Phoenix 1800 has up to 6 days run time on only 100 gallons of propane, beating all other desiccants in its class. This easy-to-use, reliable 1800 CFM desiccant is up to six times more efficient than competitive heat-based systems!

The Phoenix 1800DX System is a complete mobile drying system including a high capacity, high efficiency 1800 CFM desiccant dehumidifier, an 18 ft. tandem axle V-nose trailer with electric brakes, an optional 12kW Kohler generator, a 120 gallon DOT approved propane cylinder, and room to store and transport Phoenix Air Movers, Phoenix LGRs, flexible ducting, or anything else you might need to help speed your drying at the job site.

Running the on-board generator option allows the entire trailer system to stand alone as a drying power station for use throughout the job, supplying an additional 64 amps at 115 volts available for your drying equipment. The desiccant and generator, used in combination, can run over 2 days on 100 gallons of propane.

The Phoenix 1800DX System is the perfect first-responders to any drying emergency.

4800 Desiccant System

Desiccant System 4800

The Phoenix 4800 Industrial Desiccant Dehumidifier is built with the restorer in mind. The 4800 has two truly exceptional features, which are its ease of use and its reliability on the job site. The robust construction is designed to withstand the rigorous conditions of water damage restoration, shipyards, off- and on-shore petrochemical facilities, manufacturing plants and the general rental industry. The well designed footprint fits in the bed of a pick-up truck (with the tailgate down).

The Phoenix 4800 is constructed primarily of light-weight aluminum for maximum strength and corrosion resistance. Over 15 years of manufacturing experience have been incorporated into this tough new weather resistant design and high capacity performance. The 4800 removes over 3,000 pints of water per day at AHAM and has an operating range of -10ºF to 140ºF. The 4800 is equipped with a reactivation temperature sensor that controls the amount of heat going into the rotor, so that the desiccant is always operating under optimum conditions.

Electric Heat Drying Systems

Electric Heat Drying Systems

FireBird Compact 20FireBirdFireBird Fury

FireBird Compact 20

Compact, Lightweight, Powerful, and Safe

Firebird Compact 20

Phoenix has added another HOT option to its electric heat product offering – the FireBird Compact 20. The FireBird Compact 20 can provide up to 20,000 BTUs of instant heat and, with its 13? x 12.5? x 26? durable stainless steel cabinet, can operate virtually anywhere on the job site that heat is needed to speed up the drying process.

The FireBird Compact 20 portable electric heat drying system features multiple power receptacles for connection to common 120VAC outlets. The Compact 20 can output up to 20,000 BTUs of clean, safe heat at 250 CFM. The Compact 20’s remote thermostat, which is included with the unit, provides a means to control the temperature in the drying chamber, while its internal temperature cutout ensures safe operation.

At maximum heat (4-12 Amp Circuits @ 5,000 BTUs each), the FireBird produces 20,000 BTUs – that’s 250 CFM with a 70°F temperature rise. Internal temperature cutouts prevent the FireBird Compact 20 from overheating an area, while the Compact 20’s remote thermostat kit provides a means to control the heat from anywhere in the drying space.

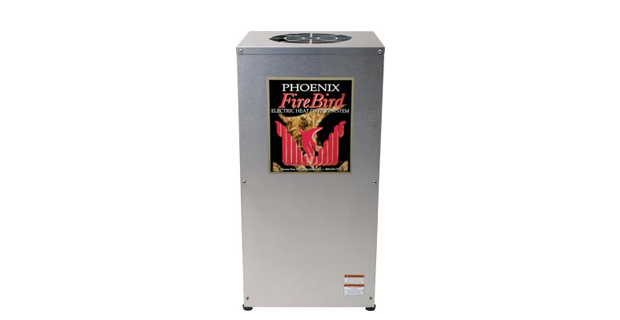

FireBird

Powerful, Portable and Safe Heat

Firebird Dehumidifier

Phoenix has turned up the HEAT with our new FireBird Electric Heat Drying System. Powerful, Portable and Safe BTU’s wherever you need them – the FireBird can provide up to 31,000 BTU’s of instant heat to speed your drying.

At the 50-amp setting, the FireBird produces 31,000 BTU’s – that’s 360 CFM with a 80°F temperature rise. Imagine placing the FireBird in an area with below freezing temperatures and instantly producing 360 CFM of air over 100 degrees. Using the 30-amp setting the FireBird produces 18,000 BTU’s – providing a 46°F temperature rise. Internal temperature cutouts prevent the FireBird from overheating an area, while the FireBird’s included remote thermostat provides a means to control the heat from anywhere in the drying space.

The Phoenix FireBird offers multiple heating, ducting, and electrical options for on-demand heating from inside or outside the drying space. The FireBird will operate freestanding or with 12-inch flex duct on the inlet and/or outlet to distribute the heat precisely where you need it.

FireBird Fury

Maximum Heat, Ultimate Flexibility

Firebird Fury

The new Phoenix FireBird Fury Electric Heat Drying System has double the heating capacity of our industry-leading FireBird and the flexibility of operating on multiple power sources. The Fury can operate on any combination of up to 6 standard, 120V 15 amp circuits, delivering up to 30,000 BTUs from 120V power. The Fury can also utilize 240V power from a 30 amp dryer circuit (18,000 BTUs) or a 50 amp range circuit (32,000 BTUs), for a total of 62,000 BTUs with all circuits running.

The FireBird Fury features 750 CFM of airflow for a safe temperature rise and maximum heat circulation. With its integrated 12” inlet and outlet duct connections and included remote thermostat, the Firebird Fury can effectively deliver heat and control temperature even into remote or inaccessible spaces.

Like all Phoenix equipment, safety and reliability are paramount. The FireBird Fury is ETL certified, UL listed and NEC compliant to ensure safe operation. The Fury utilizes a startup delay to prevent potentially dangerous arcing/sparking on startup. As an additional convenience and safety feature, all heating elements are shielded in a double wall enclosure to ensure all external surfaces are safe to touch. Internal pressure switches and temperature cutouts disable the heating elements if blocked airflow or dangerous overheating conditions are detected.

The FireBird Fury provides maximum flexibility and control in maintaining desired temperatures on the jobsite. Unlike competitive units, the multiple power options offered by the Fury will minimize the need to reconfigure your customer’s electrical service or bring in outside generators. The Phoenix FireBird Fury has combined the safety, security, and convenience of electric heat with the legendary reliability of our proven restoration equipment.

The FireBird Fury is a powerful drying tool – just another example of Phoenix Restoration Equipment leading the restoration industry with innovative products designed specifically for the restoration professional.

Hydronic Heat Drying Systems

Hydronic Heat Drying Systems

FireBird HD308FireBird TX 80FireBird TX 200

FireBird HD308

Firebird HD308

Designed and built for the rigors of the restoration industry, the Phoenix FireBird HD308 is the safest, most efficient, flexible, and durable heat drying system made. The Phoenix FireBird HD308 uses superior design to maximize drying capacity and minimize your fuel cost, while its innovative safety features and system flexibility create revenue opportunities unavailable to competing units.

The Phoenix FireBird HD308 is the industry leader in:

  • Capacity – Dries up to 10,000 sq ft.
  • Efficiency – The Phoenix FireBird HD308 features the highest system efficiency in the market, providing the most drying capacity per gallon of fuel consumed.
  • Flexibility – Multiple fan coils allow numerous drying configurations. The diesel fired burner eliminates transportation problems, fuel availability issues, and altitude limitations.
  • Safety –The Phoenix FireBird HD308 is UL, CSA, and TUV certified for safe operation. The burner system completely isolates combustion byproducts from the structure.
  • Return on Investment –The Phoenix FireBird HD308 offers multiple revenue opportunities outside restoration, including temporary heating, concrete curing, and ground thawing.

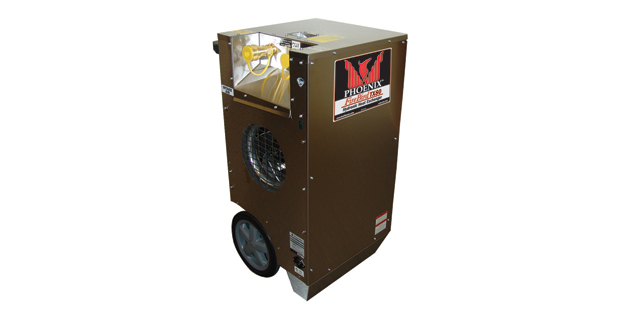

FireBird TX 80

Firebird TX 80

The Phoenix FireBird TX 80 set a new standard for heat drying technology. When coupled to a glycol central heat system, the TX 80 delivers safe, efficient, and even heat to your restoration job.

The Phoenix FireBird TX 80 provides 80,000 BTU/hr and 950 CFM. Phoenix FireBird hydronic fan coils are engineered to be the most efficient, most rugged, and most portable hydronic heat exchangers made.

Unlike direct-fired heaters, Phoenix FireBird fan coils completely isolate the heat source from combustion byproducts. This not only provides a safer heat source on the job, but also eliminates the need for outside air ventilation. By doing so, the Phoenix FireBird hydronic fan coils give restoration professionals higher efficiency, more flexibility in job setup, and a larger number of drying opportunities.

Phoenix FireBird fan coils are thermostatically controlled, allowing the user to set the optimal temperature for each job. Both units use a motorized impeller and high efficiency coil to ensure the most efficient heat transfer and even heat distribution throughout the structure.

The Phoenix FireBird TX 80 can be transported and operated upright or on its backs. This flexibility, along with multiple ducting options, allows the restoration professional to maneuver into tight or low-clearance spaces and direct the heat precisely where it is needed.

The Phoenix FireBird fan coils feature compact designs, sturdy handles, and chamfered cabinets. Their light weight, large recessed wheels, and high-impact skid plates help negotiate curbs and stairs easily. The units’ balanced designs and integral lift hooks further enhance maneuverability on the job site, while stainless steel cabinets ensure years of service without corrosion or the need for repainting.

FireBird TX 200

Firebird TX 200

The Phoenix FireBird TX 200 fan coil set a new standard for heat drying technology. When coupled to a glycol central heat system, the TX 200 delivers safe, efficient, and even heat to your restoration job.

The Phoenix FireBird TX 200 delivers 200,000 BTU/hr and 2300 CFM. Phoenix FireBird hydronic fan coils are engineered to be the most efficient, most rugged, and most portable hydronic heat exchangers made.

Unlike direct-fired heaters, Phoenix FireBird fan coils completely isolate the heat source from combustion byproducts. This not only provides a safer heat source on the job, but also eliminates the need for outside air ventilation. By doing so, the Phoenix FireBird hydronic fan coils give restoration professionals higher efficiency, more flexibility in job setup, and a larger number of drying opportunities.

Phoenix FireBird fan coils are thermostatically controlled, allowing the user to set the optimal temperature for each job. Both units use a motorized impeller and high efficiency coil to ensure the most efficient heat transfer and even heat distribution throughout the structure.

The Phoenix FireBird TX 200 can be transported and operated upright or on its back. This flexibility, along with multiple ducting options, allows the restoration professional to maneuver into tight or low-clearance spaces and direct the heat precisely where it is needed.

The Phoenix FireBird fan coils feature compact designs, sturdy handles, and chamfered cabinets. Their light weight, large recessed wheels, and high-impact skid plates help negotiate curbs and stairs easily. The units’ balanced designs and integral lift hooks further enhance maneuverability on the job site, while stainless steel cabinets ensure years of service without corrosion or the need for repainting.

Air Conditioners

Air Conditioners

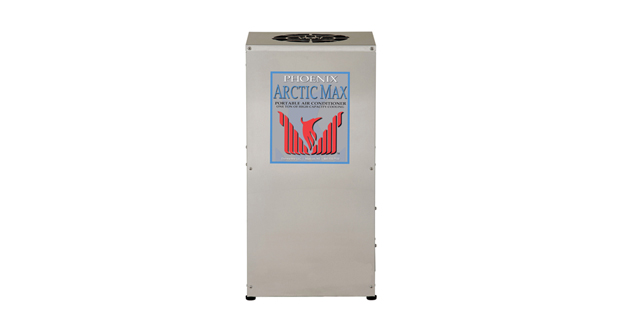

Arctic Max Portable Air Conditioner

Arctic Max Portable Air Conditioner

The new Phoenix Arctic Max is the first portable air conditioner designed specifically for the Restoration Industry. The Phoenix Arctic Max boasts one ton (12,000 BTUs) of cooling capacity operating in 95°F and 60% conditions while drawing under 12 amps. In a single pass, this provides a 15 degree temperature drop on the 430 CFM evaporator (cooling) air stream and water removal equivalent to 100 pints per day.

The Phoenix Arctic Max gives the restoration contractor vital temperature control in the affected area to optimize drying efficiency or in unaffected areas to safe-guard occupant comfort. The Phoenix Arctic Max’s cooling power also makes it the ideal accessory to pre-treat air to improve the performance of desiccant or LGR dehumidifiers. When used in conjunction with the Phoenix Solution LGR performance amplifier, the Phoenix Arctic Max provides a reliable cooling air stream to maximize overall performance. The Phoenix Arctic Max features thermostatically controlled cooling to insure maintenance of desired conditions and prevent over-cooling.

The design of the Phoenix Arctic Max reflects our restoration expertise in its size, shape, functions and features. The stainless steel cabinet and durable construction are Phoenix trademarks. The integrated cart design and recessed wheels promise easy maneuverability, transportation, and storage. Set-up and operation is simple using the Phoenix window accessory kit, and a 15 amp outlet. The Phoenix Arctic Max also features filter efficiency options up to MERV-11, an internal condensate pump with 30 foot drain hose and 20 foot power cord. The Phoenix Arctic Max promises years of service and our “proven” performance.

Air Movers

Air Conditioners

Axial Air MoverCentrifugal Air MoversStackable CAM and CAM Pro

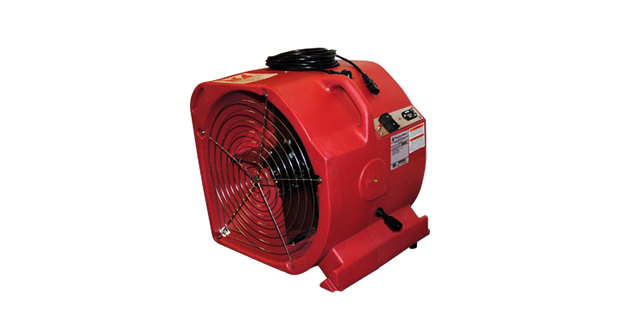

Axial Air Mover

Axial Air Mover

The Phoenix Axial Air Mover is the industry’s only air mover specifically engineered with patent pending FOCUS™ Technology. FOCUS Technology revolutionizes evaporative drying by producing CFM greater than competitive products and focusing those CFM’s on hard-to-dry areas such as carpet and pad, sub-floor and walls.

The Phoenix Axial Mover operator interface is conveniently located for easy access, featuring: power indicator lamp, three-position switch, hour meter, GFCI outlet, and circuit breaker, eliminating nuisance trips to the breaker box.

Performance

  • Greater air velocities than competitive products
  • Focused velocities 0 to over 23.5 feet
  • Directs air flow towards problematic corners, where the wall meets the floor
  • Capable of reducing secondary damage claims stemming from the side-effects of trapped humidity like fungi, mold, mildew or structural damage
  • 3000 cfm
  • Long-life 2-speed motor
  • Low noise, quiet operation

Centrifugal Air Movers

The most airflow for the fewest amps of any centrifugal

Centrifugal Air Movers

Low amp draw (UNDER 3 AMPS!), balanced airflow characteristics and maximum velocities of 975 CFM, over 2,700 FPM are the foundation on which the Phoenix Centrifugal Air Mover is built. We made sure the body was the most rugged and durable it could be, to stand up to the rigors of the restoration industry.

Getting more equipment into the drying chamber is always a challenge. The typical household electrical system cannot support the amount of equipment needed to dry the structure quickly and efficiently ensuring a nonstop search for equipment that provides both performance and low amp draw.

The unique 1/3 horsepower design of the Phoenix Centrifugal Air Mover coupled with a two-speed switch allows the restoration technician to deliver the most airflow using the fewest amps. Maximum amp draw on high speed is 2.8 amps. Minimum amp draw on low speed is a mere 2.4 amps. This means that it is now possible to fit as many as four centrifugal air movers onto a typical 15 amp household circuit. If you attempt four centrifugals from our competition, we recommend you locate the breaker box first.

The CAM housing is washable, durable, chemical resistant, and multi-positionable. In addition, molded-in runners allow for the air mover to be positioned horizontally, 45° and 90° angles.

The CAM Pro features an on-board duplex GFCI outlet and circuit breaker.

Stackable CAM and CAM Pro

Lower Amps, Higher CFM, Stacks 4 High – The New Stackable CAM and CAM Pro from Phoenix

Stackable Cam Pro

The Phoenix Stackable CAM and CAM Pro utilize an innovative stable, stackable design. With multiple contact points and interlocking side grills, the Phoenix Stackable CAM Pro can be stacked safely and securely up to 4 units high, freeing up valuable space in your trucks and warehouses.

The Phoenix Stackable CAM and CAM Pro feature a unique 1/3 horsepower motor design and proprietary blower technology, that provides more airflow, higher static pressure and lower amp draw. At 1050 CFM, over 2800 FPM, and using only 2.6 amps the Phoenix Stackable CAM and CAMPro deliver 12% more CFM, while drawing 35% less electricity than the leading competitive centrifugal on both High Speed and Low Speed (2.0 amps on low).With the low amp draw and onboard GFCI, the Phoenix Stackable CAM Pro gives you maximum airflow on a circuit, allowing up to 4 CAMs on a standard 15 amp household circuit (or up to 6 on low speed).

The Phoenix Stackable CAM housing is durable, washable, and chemical resistant. It features multiple operating positions of horizontal, vertical, and 45 degree angles. Like all Phoenix air movers, the Stackable CAM and CAM Pro are ETL Listed, and UL Certified.

The Phoenix Stackable CAM is lightweight and properly balanced for easy handling and features the additional convenience features of a lighted plug for confirming power at the outlet and superior cord management for better, packing and storage.

Air Scrubbers

Air Scrubbers

Guardian HEPA SystemMini-Guardian HEPA SystemMini-Guardian HEPA System

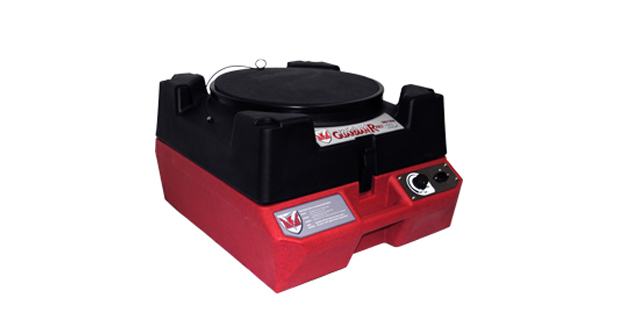

Guardian HEPA System

True 1400 CFM Air Scrubber

The Phoenix Guardian HEPA System was the first portable air scrubbing device designed exclusively for the restoration industry. The Guardian can perform several critical air quality remediation functions simultaneously.

The Guardian HEPA System captures virtually all removable airborne particles. The optional 4-stage absorption filter contains a blend of activated carbon and potassium permanganate to remove airborne odors and chemicals.

The true 1400 cfm capacity of the Phoenix Guardian HEPA System will clean one air change of a 12 x 14 foot room in less than a minute. In order to be effective, an air scrubber should be able to perform a minimum of four air changes per hour. Therefore, a single Guardian can be expected to control up to 21,000 cubic feet.

The Guardian’s high airflow and multiple ducting options allow for the combination of negative or positive air flow control of an area and containment air scrubbing at the same time. This provides the unique ability to continually filter the indoor air and depressurize the damaged site to prevent the spread of contamination simultaneously.

The Guardian’s intake will accept either 18? flexduct or 12? flex-duct with the included adapter, to pressurize areas for protection from contamination or to draw contaminated air from areas that are difficult to access or too small to accommodate an air scrubbing device.

Every Guardian HEPA System comes with one 14? lay-flat duct ring, for 100% negative air operation, and two 10? lay-flat duct rings for a combination of negative air, air scrubbing or positive airflow.

Optional Activated Carbon & Potassium Permanganate Filtration

The Guardian Carbon Filter Frames are an improved way to provide gas and odor filtration. The 20-gauge galvanized metal frames are available in 24? x 24? x 2? (Part No. 4024764) for the Guardian HEPA System. The Carbon and Potassium Permanganate media to fill the frames is available in 30 pound buckets (Part No. 4024528).

There are several advantages to using the Carbon Filter Frames instead of manufactured carbon filters:

  • The media will stay “fresher” stored in the 5 gallon bucket
  • Loading the filter by the job provides the opportunity to adjust the amount of media for the specific job
  • Substantial savings are realized by using the filter frame over manufactured carbon filters
  • Replacement foam liners and honeycomb inserts are also available

Mini-Guardian HEPA System

True 415 CFM Air Scrubber

Guardian Hepa System

The Phoenix Guardian HEPA System was the first portable air scrubbing device designed exclusively for the restoration industry. The Guardian can perform several critical air quality remediation functions simultaneously.

The Guardian HEPA System captures virtually all removable airborne particles. The optional 4-stage absorption filter contains a blend of activated carbon and potassium permanganate to remove airborne odors and chemicals.

The true 1400 cfm capacity of the Phoenix Guardian HEPA System will clean one air change of a 12 x 14 foot room in less than a minute. In order to be effective, an air scrubber should be able to perform a minimum of four air changes per hour. Therefore, a single Guardian can be expected to control up to 21,000 cubic feet.

The Guardian’s high airflow and multiple ducting options allow for the combination of negative or positive air flow control of an area and containment air scrubbing at the same time. This provides the unique ability to continually filter the indoor air and depressurize the damaged site to prevent the spread of contamination simultaneously.

The Guardian’s intake will accept either 18? flexduct or 12? flex-duct with the included adapter, to pressurize areas for protection from contamination or to draw contaminated air from areas that are difficult to access or too small to accommodate an air scrubbing device.

Every Guardian HEPA System comes with one 14? lay-flat duct ring, for 100% negative air operation, and two 10? lay-flat duct rings for a combination of negative air, air scrubbing or positive airflow.

Optional Activated Carbon & Potassium Permanganate Filtration

The Guardian Carbon Filter Frames are an improved way to provide gas and odor filtration. The 20-gauge galvanized metal frames are available in 24? x 24? x 2? (Part No. 4024764) for the Guardian HEPA System. The Carbon and Potassium Permanganate media to fill the frames is available in 30 pound buckets (Part No. 4024528).

There are several advantages to using the Carbon Filter Frames instead of manufactured carbon filters:

  • The media will stay “fresher” stored in the 5 gallon bucket
  • Loading the filter by the job provides the opportunity to adjust the amount of media for the specific job
  • Substantial savings are realized by using the filter frame over manufactured carbon filters
  • Replacement foam liners and honeycomb inserts are also available

Mini-Guardian HEPA System

True 415 CFM Air Scrubber

Mini Guardian Hepa System

The Mini-Guardian HEPA System is the compact, variable air speed version of our popular Phoenix Guardian HEPA System that offers fully variable air flow.

Maximum delivered air flow with 3-stage filtering in place is over 415 CFM and will clean one air change of a 14 x 14 foot room in less than four minutes while drawing less than two amps of power. This makes the Mini-Guardian perfect for smaller remediation projects where space is at a premium and reduced air flow essential. A template on the intake grill makes it possible to take air-flow measurements with the Phoenix Reed Meter.

The Mini-Guardian’s 3-stage filter design with true HEPA filtration will remove virtually all hazardous particles from the air and an optional fourth stage filter of activated carbon and potassium permanganate will absorb a wide range of odors and gases. The unique 24? canister, HEPA manufactured for the Mini-Guardian, contains nearly 200 square feet of surface area. This allows maximum air-flow and significantly extends filter life.

The Mini-Guardian’s unique duct discharge collar allows some filtered air to be directed to specific areas or outside as negative air providing the ability to operate as a negative air machine. By exhausting a portion of the air flow, the Mini-Guardian continues to scrub and recirculate a volume of the air inside. This prevents spreading the contamination to other areas and quickly improves air quality at the damage site.

Just like the original Phoenix Guardian HEPA System, the Mini-Guardian features a durable, stainless steel cabinet, hour meter, ductable in-take and exhaust, and wheeled cart design. The Mini-Guardian can be operated vertically or horizontally and takes up less than half the floor space of the larger Guardian.

GuardianR Pro HEPA System

Powerful, Portable, Lightweight, True HEPA.

Guradian Pro HEPA System

The Phoenix GuardianR Pro HEPA System is the most compact, portable, True HEPA air filtration device made. Its energy-efficient rotomold design is durable, lightweight and stackable, making it the ultimate blend of portability and performance.

Whether set-up as an air scrubber or negative air machine, the Phoenix GuardianR Pro HEPA System has been independently tested to verify True HEPA performance of not just the filter but of the entire device while delivering over 500 CFM of filtered airflow. With variable speed control (between 250 CFM and 500 CFM), the GuardianR Pro delivers the right amount of desired airflow. The efficiency doesn’t end with the filter performance and airflow; the GuardianR Pro draws less than 2 amps of power. This makes the GuardianR Pro HEPA System perfect for a variety of remediation projects where space and power are at a premium. A single GuardianR Pro will provide 4 air changes per hour (the recommended minimum) on 7500 cubic feet (more than a 30? x 30? x 8? room).

The GuardianR Pro weighs in at a mere 33 lbs. and has a compact design with a 14-inch height and a small 22 x 24 footprint. Designed to operate horizontally or vertically, the large 16-inch diameter inlet maximizes the capture zone of airborne particles. The detachable outlet duct ring makes attaching lay flat duct quick and easy, so you can deliver HEPA filtered air where you want it. The molded handle and stackable design makes the GuardianR Pro easy to hand carry, transport and store.

The GuardianR Pro also has a built in GFCI outlet and 12 amp breaker to conveniently provide 10 amps of power for other devices while operating at high speed. A Change Filter Light automatically alerts the restoration professional when the filters should be checked and possibly replaced to maintain maximum CFM performance.

The GuardianR Pro’s 2-stage filter design removes virtually all hazardous particles from the air and the optional carbon/potassium permanganate filter can be used to absorb a wide range of odors and gases.

Water Extractors

Water Extractors

Water ExtractorsHydro-X Vacuum Pac

Hydro-X Xtreme Xtractor

Superior Water Extraction Tool

The Phoenix Hydro-X Xtreme Xtractor is the most effective and efficient extraction tool on the market today. The Hydro-X Xtreme Xtractor’s patented Suction Roller provides both suction and compression – forcing water to the surface then pulling the water away, not allowing the water to be reabsorbed back into the carpet and pad. No other extractor today can pull as much water from the carpet and pad as the Hydro-X Xtreme Xtractor.

The Hydro-X Xtreme Xtractor is steerable and self-propelled with variable speeds. One restoration technician can operate the unit and dry a 1200 sq. ft. structure with carpet and pad in under 2 hours!

Insurance companies recognize the Hydro-X Xtreme Xtractor as the best tool on the market and allow for “special extraction tool” rates, sometimes up to three times higher rates per sq. ft. than regular extraction tools.

The Society for Cleaning Restoration Technicians, formerly ISCT, performed a market study of extraction devices at Shaw Industries. In that independent study of restoration professionals, the Hydro-X Xtractor with the Hydro-X Vac Pac pulled more water out of the carpet and pad than any other product on the market, in one case pulling 40 gallons (or 320 pints) more water out of the structure than the next best tool.

The Hydro-X Xtreme Xtractor tool can be connected with the Hydro-X Vacuum Pac, other portable extractors, or truckmounts. However, the SCRT W.E.T. Study showed best performance is when combined with the Hydro-X Vacuum Pac.

Industry experts agree that it is quicker to extract water than to evaporate— if you want to cut days off of your drying process, a Hydro-X Xtractor is a necessity.

Hydro-X Vacuum Pac

HydroX Vacuum PAC

The Phoenix Hydro-X Vacuum Pac outperforms the competition by its ability to apply all of its suction power at the source, pulling more water than any other restoration extraction tool on the market today.

The Vacuum Pac, with it’s patented, portable design and high-end technology, has two powerful vacuum motors that can generate maximum suction. And because it is portable, the Vacuum Pac can be handcarried anywhere in a structure. Truckmount units must stay outside the structure, and every foot of hose deducts 1 cfm of vacuum power. When compared to truckmount units, the Vac Pac can apply all of its suction power right at the source of the water, losing no cfm due to 24, 50 or 100 ft. of hose.

The Society for Cleaning Restoration Technicians (SCRT), formerly ISCT, performed a market study of extraction devices at Shaw Industries. In that independent study by restoration professionals, the Hydro-X Xtractor with Hydro-X Vac Pac pulled more water out of the carpet and pad than any other product on the market today, in one case pulling over 40 gallons or 320 pints more water out of the structure than the next best tool. How much longer would it have taken to dehumidify 40 gallons (320 pints) of water if the restorer had not used the Hydro-X. This study looked at using truckmounts with the different extraction tools. In every case, the Hydro-X Vacuum Pac extracted more water with the different extraction tools than the truckmount with the same or similar tools.

The Vacuum Pac can be run separate from the Hydro-X Xtreme Xtractor and can run with standard wands, water claws, and any other extraction tool allowing for a 2 in. connector.

Portable Truckmount Performance

The patented Hydro-X Vacuum Pac was designed to provide suction power superior to any other portable or truckmount unit on the market today.

Any standard extraction tool, from a wand to a water claw, to the Hydro-X Xtreme Xtractor can be combined with the Vacuum Pac allowing for extraction on hard surfaced floors and hard to reach areas for the Xtreme Xtractor.

Accessories

Accessories

Quick Chamber SystemMeters & InstrumentsWindow Adaptor

Quick Chamber System

Effective and Efficient System For Creating a Grain Barrier

Quick Chamber System

The Phoenix Quick Chamber, designed with the Restoration Professional in mind, is an easy way to create an effective drying chamber that will completely contain a water loss affected area within minutes. This containment can be accomplished practically anywhere in the structure (e.g., hallway, doorway, etc.) simply by sealing open thresholds and passageways. The Quick Chamber not only incorporates durability in its construction and installation, but flexibility in its application. It has been specifically designed to be installed by one person, so an effective drying chamber can be set up by an individual rather than a team.

Once installed, the Quick Chamber will restrict moisture transfer into and out of the water loss affected area. This will also stop secondary damage at the beginning of the job, and later enhance the dry-down by preventing moist air from migrating into your drying chamber. Don’t waste valuable dehumidifying capacity–minimize the area that you need to dry. By staying focused on just the affected area, you can free up the necessary equipment needed to move on to the next job.

Each step in the drying process is important, and the first step – creating a drying chamber – is no exception. Every water restoration team should have a Phoenix Quick Chamber System in their truck.

Meters & Instruments

Phoenix HM-34 ThermoHygrometer

Meters Instruments

Ideal for Spot-Checking Humidity Levels

Phoenix HM-40 ThermoHygrometer

Phoenix HM-40 ThermoHygrometer With Probe

The Precision Humidity Meter With Standard Probe or Remote Probe

Phoenix Humiport 05 ThermoHygrometer

Phoenix Humiport 10 ThermoHygrometer

Phoenix Humiport 20 ThermoHygrometer

Large Display for Easy Reading

Phoenix Psychrometric Calculator

Quick and Easy Dew Point and Grains Calculations

Reed LM 8000 Meter

Precision Multifunction Meter With Temp, RH, and Anemometer

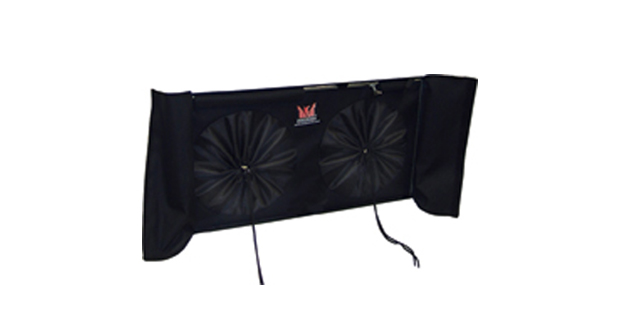

Window Adaptor

Quick, Professional Way to Duct Drying Equipment

Window Adaptor

The Phoenix Window Adapter is an easy-to-use and convenient tool for the restoration professional to properly duct drying equipment outside the affected structure. It quickly adapts to most double hung and sliding windows as a portal without the use of plywood or cardboard!

With its adjustable size openings and quick release cords, the Phoenix Window Adapter immediately secures the ducting to the window, completely eliminating the need for messy tape.The Phoenix Window Adapter’s water resistant construction will assist in keeping moisture from infiltrating the drying space, even if it is raining outside.

The Phoenix Window Adapter can be installed in minutes. Simply expand the adapter into the window guides, tighten the set screw, and it is ready to use. The Phoenix Window Adapter fits windows from 23 inches to 36 inches wide and accepts most duct sizes up to 12 inch (non-insulated) or 10 inch (insulated).

International Products

International Products

R200 LGR Dehumidifier, 50 HzAxial Air Mover, 50 HzCentrifugal Air Mover, 50 HzGuardianR HEPA System, 50 HzHydro-X Xtreme Xtractor, 50 Hz

R200 LGR Dehumidifier, 50 Hz

Extra Large Capacity in a Small Package

R200 LGR Dehumidifier

The Phoenix R200 50 Hz is a compact, energy efficient LGR dehumidifier that removes over 52 liters per day (AHAM) while drawing only 3.7 amps of electricity. The R200 50 Hz outperforms the larger competitive dehumidifiers by removing more water, providing larger grain depression and consuming less power. The proven LGR design is surrounded by a durable roto-molded high impact plastic to create a dehumidifier that is smaller and lighter than competitive units.

In addition to the performance benefits and tough compact size, the R200 50 Hz has patented bypass technology, increased airflow, multiple ducting options, and a high efficiency MERV 11 filter. The R200 50 Hz is the latest member of the Phoenix line of LGR dehumidifiers; the most effective and versatile drying devices made.

Cords are available for UK, EU or AUS power connection.

Axial Air Mover, 50 Hz

Maximum Air Flow with Low Amps

Axial Air Mover

The Phoenix 50 Hz Axial Air Mover (AAM) is the industry’s only Air Mover specifically engineered with patented FOCUS™ Technology, The FOCUS corner revolutionized evaporative drying by producing effective air velocities over a larger area than competitive products. This highly focused air flow is directed towards the most difficult areas to dry namely, carpet and cushion, sub-floor, sill plate and walls. No other fan dries the sill plate as fast! Finally, the Phoenix 50Hz Axial Air Mover with FOCUS Technology sustains these air velocities further than any other 50Hz Axial Air Mover.

The Phoenix 50 Hz Axial Air Mover includes a 2-speed motor delivering a focused airstream of approximately 4900 m3/hr. (2900 cfm), lightweight stackable enclosure designed to fit existing vehicle rigging, superior cord management and hour meter.

Conventional axial air movers create a circular air jet and the only way to get air into the square corner is to point the fan in the direction of the corner. This angle wastes valuable air velocity and effective distance. FOCUS Technology creates an air jet with a square corner, resulting in optimized drying ability. In addition, the 50 Hz Axial Air Mover features built-in 4.5° positioning which increases the fan’s effective drying distance. The Phoenix 50 Hz AAM is another example of superior performance and innovative design from Phoenix engineering.

Centrifugal Air Mover, 50 Hz

The most airflow for the fewest amps of any centrifugal

Centrifugal Air Mover

Low amp draw, balanced airflow characteristics and maximum velocity of 2700 FPM (825 meters/min) are what propel the Phoenix CAM 50 Hz to rise above the competition. The unique 1/3 horsepower design of the Phoenix Centrifugal Air Mover, coupled with a two-speed switch, allows the restoration technician to deliver the most airflow using the fewest amps.

Maximum amp draw on high speed is 2.0 amps. This drops to a mere 1.5 amps on low speed. It is now possible to fit more Phoenix Centrifugal Air Movers onto a typical grounded circuit. The Phoenix CAM is lightweight, has a power indicator lamp, large three-position switch, and superior cord management.

The Phoenix housing is durable, washable, and chemical resistant. It features multiple operating positions allowing it to be angled up from horizontal to 45° and 90°.

Cords are available for UK, EU or AUS power connection.

GuardianR HEPA System, 50 Hz

Powerful, Portable, Lightweight, True HEPA

Guardian Hepa System

The Phoenix GuardianR HEPA System is the most compact, portable unit in our popular line of high performance airscrubbers. The Phoenix Guardian R features a 56 cm x 61 cm (22? x 24?) footprint and stands only 34 cm (14?) tall. Weighing less than 16 kg (33 lbs.) and featuring a molded handle and stackable design, the GuardianR is easy to carry, transport, and store.

For maximum flexibility, the Phoenix GuardianR features variable airflow and can be operated vertically or horizontally. The Guardian R is designed to accept 41 cm (16?) inlet flex duct and 10? lay flat outlet duct for a variety of operating set-up options.

The GuardianR delivers a maximum 825 m3/hr (485 CFM) of HEPA filtered air, while drawing less than 1.2 amps of power. This makes the GuardianR HEPA System perfect for a variety of remediation projects where space and power are at a premium.

Hydro-X Xtreme Xtractor, 50 Hz

Patented Suction Roller Provides Both Suction and Compression

Hydro X Xtreme Xtractor

The Phoenix 50 Hz Hydro-X Xtractor is the most effective and efficient extraction tool on the market today. The Hydro-X Xtractor’s patented Suction Roller provides both suction and compression — forcing water to the surface then sucking the water away, not allowing the water to be reabsorbed back into the carpet and pad. No other extractor today can pull as much water from the carpet and pad as the Hydro-X Xtractor.

The Hydro-X Xtractor is steerable and self-propelled with variable speeds. One restoration technician can operate the unit and extract a 110 square metre (1200 sq. ft.) structure with carpet and pad in under 2 hours!

Insurance companies recognize the Hydro-X as the best tool on the market and allow for “special extraction tool” rates, sometimes up to three times higher rates per sq. ft. than regular extraction tools.

The Society for Cleaning Restoration Technicians, formerly ISCT, performed a market study of extraction devices at Shaw Industries. The results from that testing can be seen in the published report from www.isct.com. In that independent study of restoration professionals, the Hydro-X Xtractor with the Hydro-X Vac Pac pulled more water out of the carpet and pad than any other product on the market today, in one case pulling 40 gallons (or 320 pints) more water out of the structure than the next best tool.

Industry experts all agree that it is easier to extract water out of a structure than it is through dehumidification and air movement. If you want to cut a DAY(S) off of your drying process, a Hydro-X Xtractor is a necessity.

The Hydro-X Xtreme Xtractor tool can be connected with the Hydro-X Vacuum Pac, and other portable extractors or truckmounts. However, the SCRT W.E.T. Study showed best performance is when combined with the Hydro-X Vacuum Pac.

Features

  • Patented suction roller
  • Self-propelled with positive chain drive – no belts to break or adjust
  • Variable speed for every carpet and pad condition
  • Extracts in both forward and reverse
  • Rust and corrosion resistant stainless steel construction
  • Built to withstand daily use
  • Heavy duty electricals
  • One year warranty on parts and labor

Fields marked with an * are required

Sign Up

for Exclusive Online Deals!
